远程证明
# AA
**换源**
```
vi /etc/apk/repositories
```
```
https://mirrors.tuna.tsinghua.edu.cn/alpine/v3.14/main
https://mirrors.tuna.tsinghua.edu.cn/alpine/v3.14/community
```
**添加代理**
```
touch ~/.bashrc
vi ~/.bashrc
```
```
export HTTP_PROXY=http://172.24.51.140:7890
export HTTPS_PROXY=http://172.24.51.140:7890
```
```
source ~/.bashrc
```
**更新包管理器**
```
apk update
```
**下载git、make、curl**
```
apk add git make curl
```
**下载rust**
```
curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh -s -- -y --default-toolchain stable
```
```
source "$HOME/.cargo/env"
```
```
export RUSTUP_HOME=/mnt/.rustup
export CARGO_HOME=/mnt/.cargo
```
**下载AA**
```
git clone https://github.com/containers/attestation-agent
```
```
cd attestation-agent
```
```

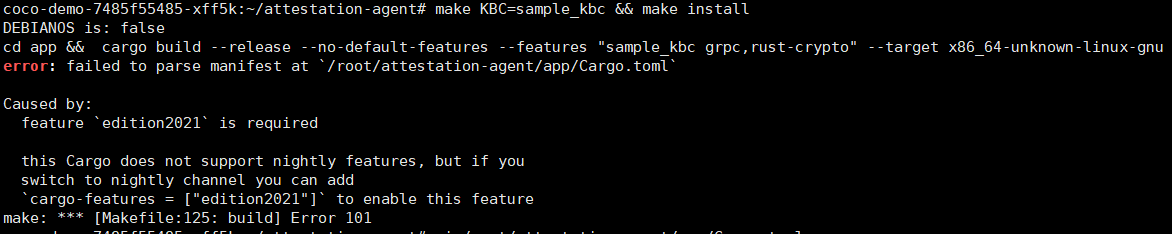

make KBC=sample_kbc && make install
```

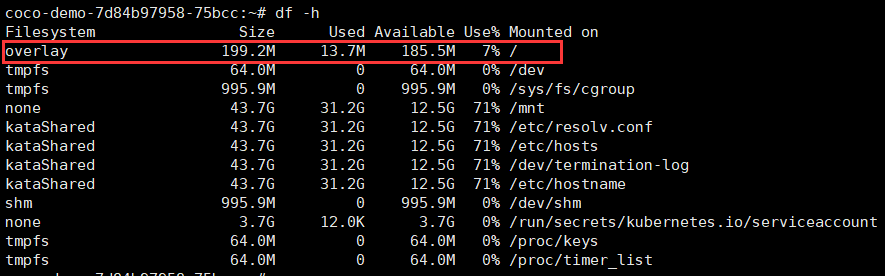

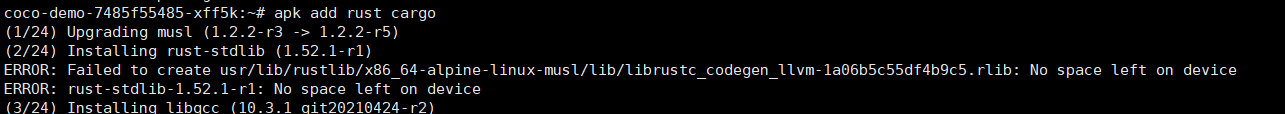

**查看磁盘大小**
```
df -h
```
**创建一个新的空白的镜像文件，大小为1GB**
```
dd if=/dev/zero of=new.img bs=1G count=1
```
**使用 fdisk创建分区**
```
fdisk new.img
```
**创建loop设备**
```
losetup -P -f --show new.img
```
**复制分区**
```
dd if=/dev/loop0p1 of=/dev/loop1p1 bs=2M status=progress
dd if=/dev/loop0p2 of=/dev/loop1p2 bs=2M status=progress
```
```
dd if=/dev/loop0 of=/dev/loop1 bs=2M status=progress
```
**使用 resize2fs扩大文件系统**
```
resize2fs /dev/loopXp1
```
**删除 loop 设备**
```
losetup -d /dev/loop1
```
**使用持久卷**
```kind: Service
apiVersion: v1
metadata:
name: coco-demo
spec:
selector:
app: coco-demo
ports:
- port: 22
---
kind: Deployment
apiVersion: apps/v1
metadata:
name: coco-demo
spec:
selector:
matchLabels:
app: coco-demo
template:
metadata:
labels:
app: coco-demo
spec:
runtimeClassName: kata-qemu
containers:
- name: coco-demo
image: docker.io/katadocker/ccv0-ssh
imagePullPolicy: Always
volumeMounts:
- name: ima-config-volume
mountPath: /sys/kernel/security/
- mountPath: /mnt
name: my-volume
volumes:
- name: ima-config-volume
hostPath:
path: /sys/kernel/security/
type: Directory
- name: my-volume
persistentVolumeClaim:
claimName: my-pvc
```

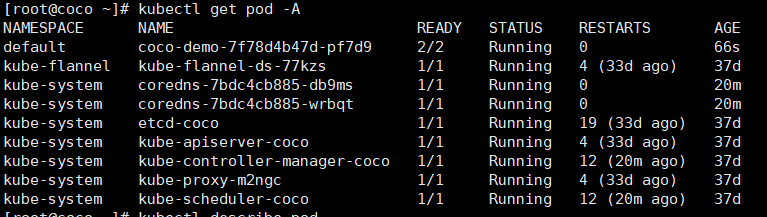

**一个pod内运行两个机密容器**
```
containers:
- name: coco-first
image: docker.io/katadocker/ccv0-ssh
imagePullPolicy: Always
- name: coco-second
image: docker.io/katadocker/ccv0-ssh
imagePullPolicy: Always
```

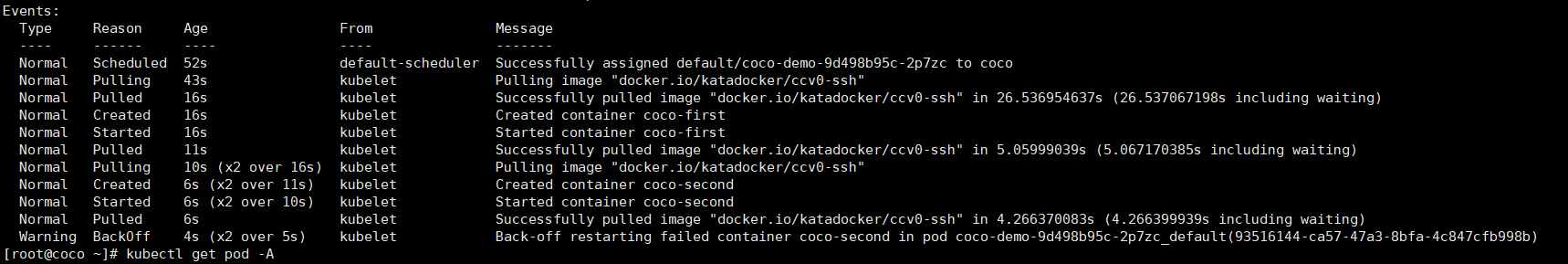

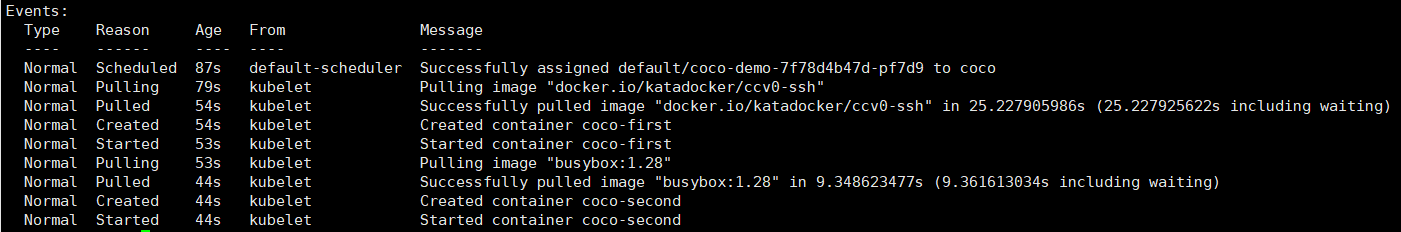

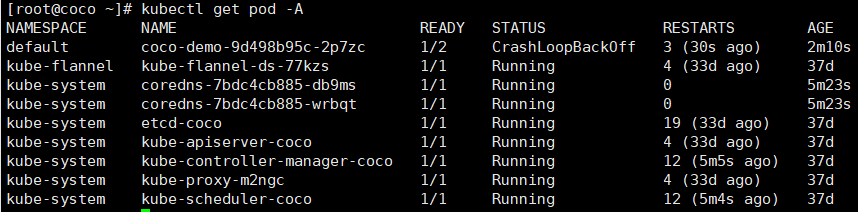

**报错**
```
containers:
- name: coco-first
image: docker.io/katadocker/ccv0-ssh
imagePullPolicy: Always
- name: coco-second
image: busybox:1.28
imagePullPolicy: Always
```
# 运行KBS
**安装Rust环境**
```
curl https://sh.rustup.rs -sSf | sh
source "$HOME/.cargo/env"
```
**安装go环境**
```
wget https://golang.google.cn/dl/go1.22.3.linux-amd64.tar.gz
export PATH=$PATH:/usr/local/go/bin
go version
```
**安装kbs**
```
make background-check-kbs POLICY_ENGINE=opa
sudo make install-kbs
```

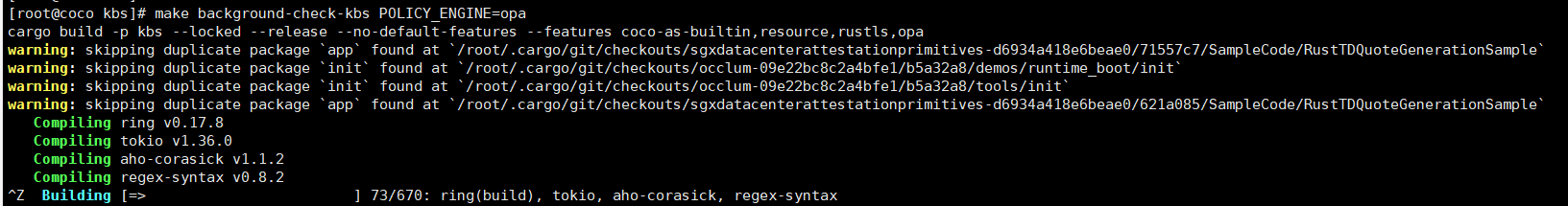

**编译超时**
**获取kbs源码**
```
git clone https://github.com/confidential-containers/trustee.git
```
**转到对应目录**
```
cd /root/trustee/kbs/config/kubernetes
```
**配置密钥**
```
echo "$(cat /root/image_key|base64)" > overlays/key.bin
```

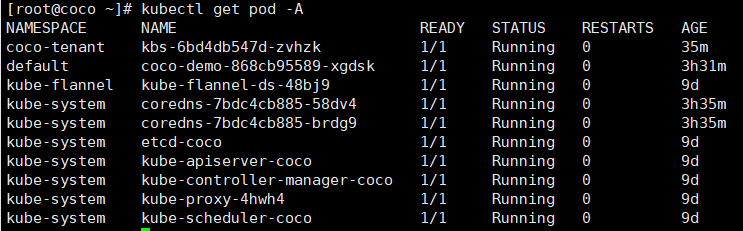

**运行脚本**
```
./deploy-kbs.sh
```
# 加密镜像
**创建镜像**
```
docker build -t unencrypted - <<EOF
FROM nginx:stable
RUN echo "something confidential" > /secret
EOF
```
```
head -c 32 /dev/urandom | openssl enc > image_key
KEY_B64="$(base64 < image_key)"
```
```
KEY_PATH="/default/image_key/nginx"
KEY_ID="kbs://${KEY_PATH}"
```
```
git clone https://github.com/confidential-containers/guest-components.git
cd guest-components

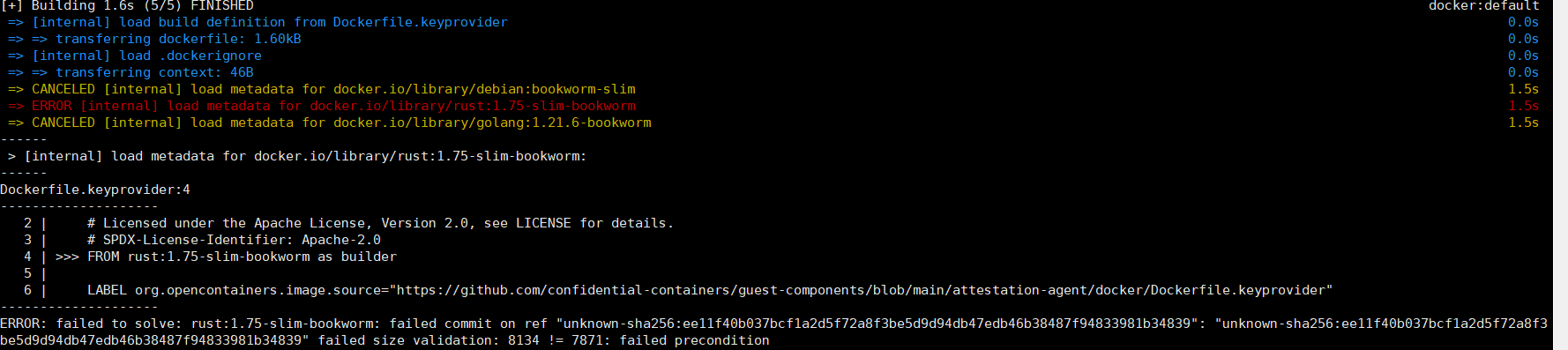

docker build -t coco-keyprovider -f ./attestation-agent/docker/Dockerfile.keyprovider .
```
```
mkdir -p oci/{input,output}
skopeo copy docker-daemon:unencrypted:latest dir:./oci/input
docker run -v "${PWD}/oci:/oci" coco-keyprovider /encrypt.sh -k "$KEY_B64" -i "$KEY_ID" -s dir:/oci/input -d dir:/oci/output
```
```
skopeo inspect dir:./oci/output | jq '.LayersData[0].Annotations["org.opencontainers.image.enc.keys.provider.attestation-agent"] | @base64d | fromjson'
```
```
ENCRYPTED_IMAGE=some-private.registry.io/coco/nginx:encrypted
skopeo copy dir:./oci/output "docker://${ENCRYPTED_IMAGE}"
```

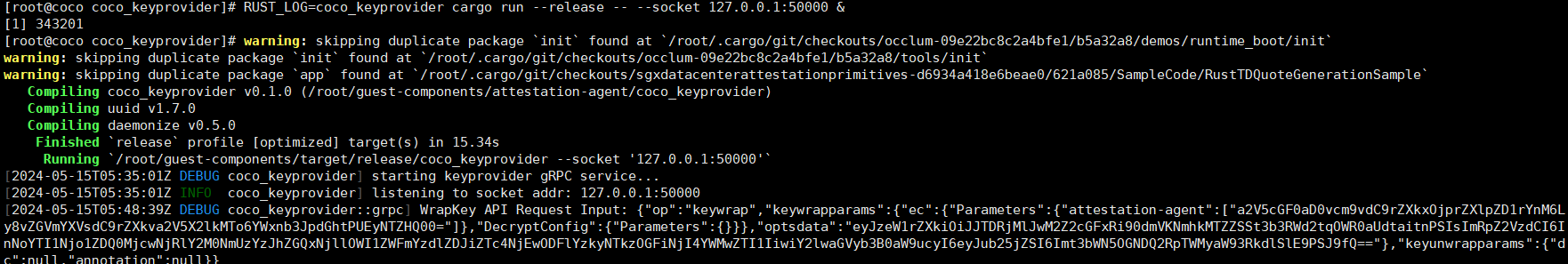

**启动coco_keyprovider服务**
```
cd attestation-agent/coco_keyprovider
RUST_LOG=coco_keyprovider cargo run --release -- --socket 127.0.0.1:50000 &
```
```
cat <<EOF > ocicrypt.conf
{
"key-providers": {
"attestation-agent": {
"grpc": "127.0.0.1:50000"
}}}
EOF
```
**安装依赖**
```
yum install protobuf-compiler
```
**生成密钥**
```
export OCICRYPT_KEYPROVIDER_CONFIG="$(pwd)/ocicrypt.conf"
head -c32 < /dev/random > key1
```

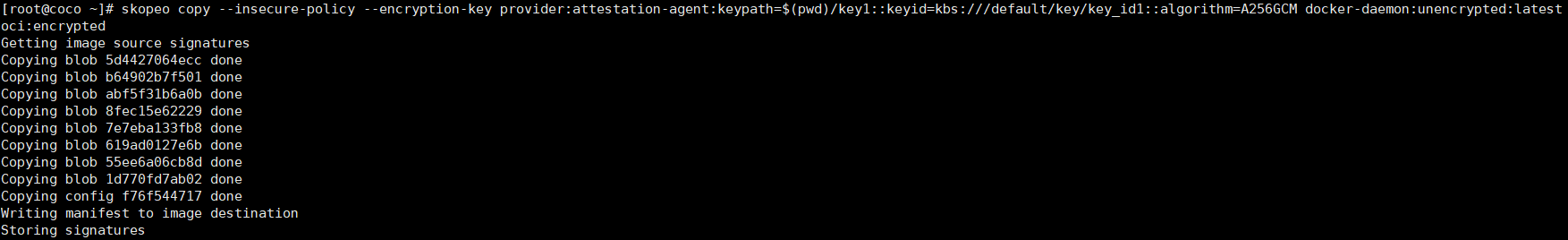

**加密镜像**
```
skopeo copy --insecure-policy --encryption-key provider:attestation-agent:keypath=$(pwd)/key1::keyid=kbs:///default/key/key_id1::algorithm=A256GCM docker-daemon:unencrypted:latest oci:encrypted
```
**上传镜像**
```
ENCRYPTED_IMAGE=docker.io/legend/nginx:encrypted
skopeo copy oci:encrypted "docker://${ENCRYPTED_IMAGE}"
```
**添加docker账户**
```
skopeo copy oci:encrypted docker://docker.io/legend/nginx:encrypted --dest-creds=username:password
```
**删除.config文件**
```
mkdir -p /root/.config/containers/crets.d/docker.io
```

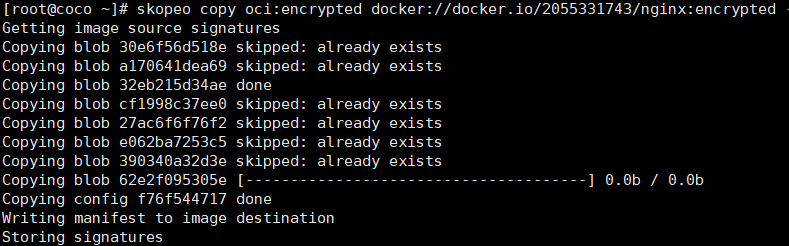

**创建仓库**
```
skopeo copy oci:encrypted docker://docker.io/2055331743/nginx:encrypted --dest-creds=username:password
```

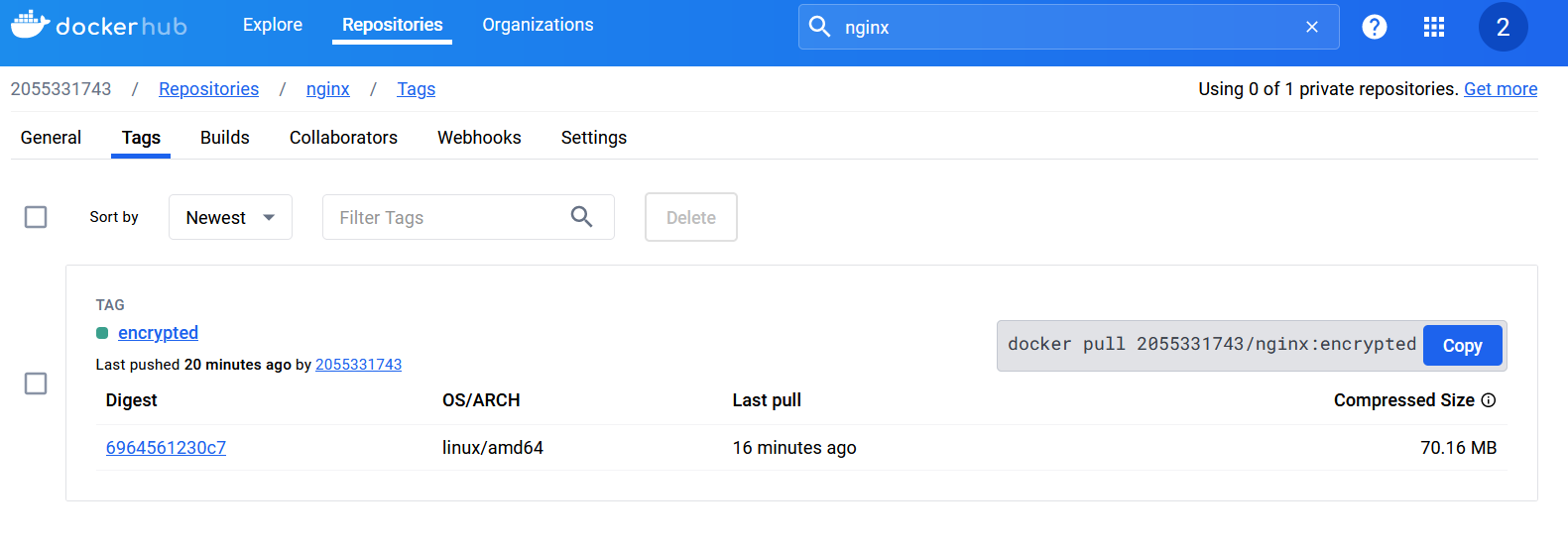

**查看docker hub**

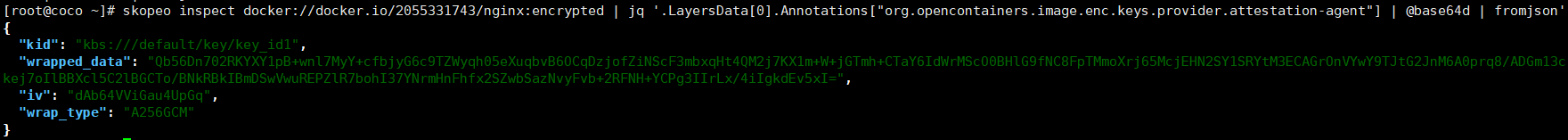

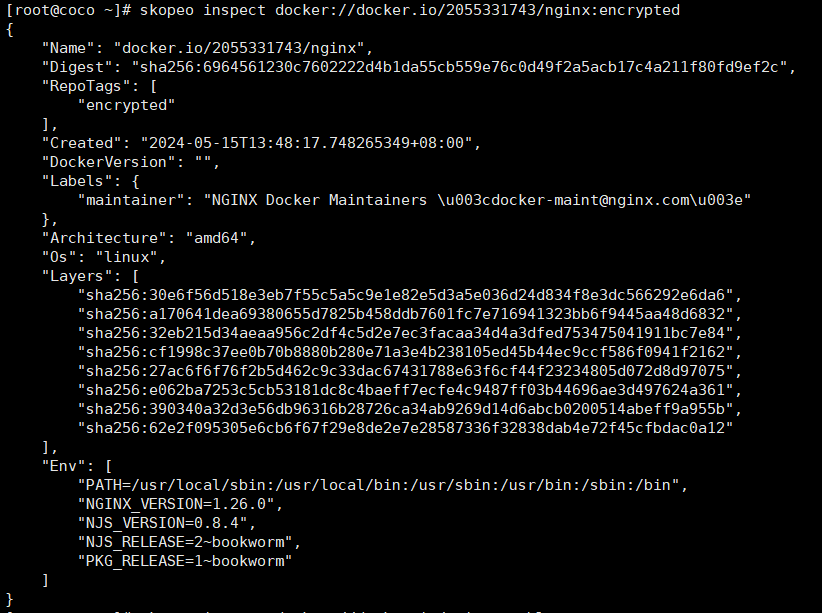

**查看加密信息**
# 使用dd创建虚拟机镜像
**创建一个新的空白的镜像文件，大小为1GB**
```
dd if=/dev/zero of=new.img bs=1G count=1
```
**使用 fdisk创建分区**
```
fdisk new.img
```
**创建loop设备**
```
losetup -P -f --show new.img
```
**挂载**
```
mount /dev/loop0p1 /mnt/kata-p1
```
**解除**粗体**挂载**
```
umount /mnt/kata-p1
```
**删除 loop 设备**
```
losetup -d /dev/loop1
```
# 使用云镜像创建虚拟机镜像
**获取云镜像**
```
wget https://cloud-images.ubuntu.com/focal/current/focal-server-cloudimg-amd64.img
```
**下载qemu工具**
```
yum install -y qemu-kvm
```
**转换qcow2为raw**
```
qemu-img convert -p -f qcow2 -O raw focal-server-cloudimg-amd64.img focal-server-cloudimg-amd64.raw
```
**扩容**
```
qemu-img resize -f raw focal-server-cloudimg-amd64.raw +1G
```

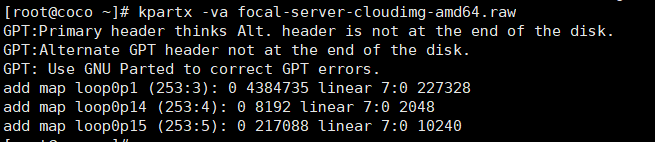

**添加映射**
```
kpartx -va focal-server-clouding-amd64.raw
```

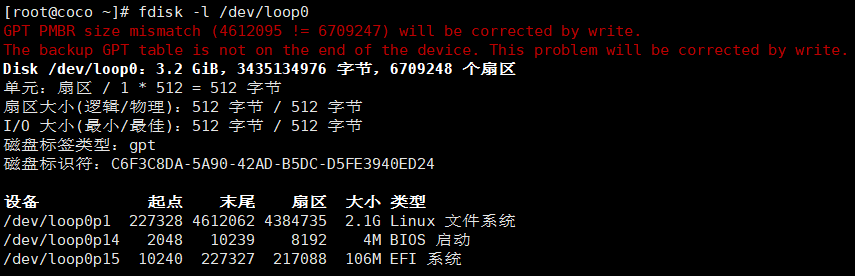

**查看分区信息**
```
fdisk -l /dev/loop0
```
**删除第一个分区**
```
parted /dev/loop0 rm 1
```
**重新创建分区**
```
parted /dev/loop0 mkpart primary ext4 116MB 3.2GB
```

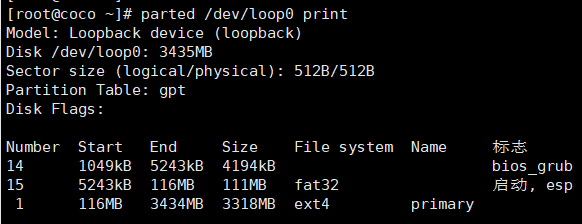

**输出分区**
```
parted /dev/loop0 print
```
**重新映射**
```
kpartx -d focal-server-cloudimg-amd64.raw
kpartx -va focal-server-cloudimg-amd64.raw
```
**调整文件系统大小**
```
e2fsck -f /dev/mapper/loop0p1
resize2fs /dev/mapper/loop0p1
```
**查看文件系统**
```
mount /dev/mapper/loop0p1 /mnt
df -h /mnt
umount /mnt
kpartx -d focal-server-cloudimg-amd64.raw
```
```
fdisk -l focal-server-cloudimg-amd64.raw
mount -o loop,offset=$((227328 * 512)) focal-server-cloudimg-amd64.raw /mnt
```
**修改DNS**
```
unlink /mnt/etc/resolv.conf
touch /mnt/etc/resolv.conf
sudo mount -o bind /etc/resolv.conf /mnt/etc/resolv.conf
```
**进入云镜像的根目录**
```
sudo chroot /mnt
mount -t proc proc /proc
mount -t devpts devpts /dev/pts
df -h
```
**解除挂载**
```
umount /dev/pts
umount /proc
history -c
exit
umount /mnt/etc/resolv.conf
umount /mnt
```
