取货界面

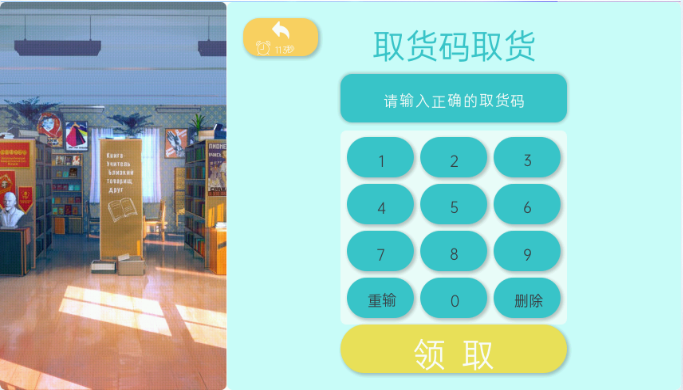

## 效果图
## 界面划分
#### 页面十分简单，主要因为矩阵键盘和输入框自带很多默认的功能实现，高度自定义样式与功能
## 取货页面消息框
#### 和商品列表相同，传入不同的消息在页面显示

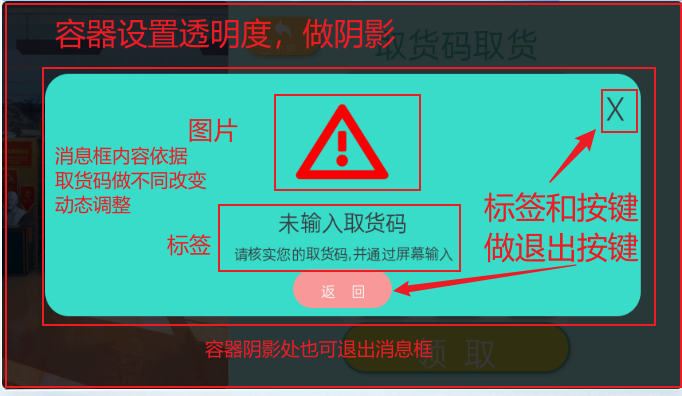

### 不输入内容
### 正确的取件码

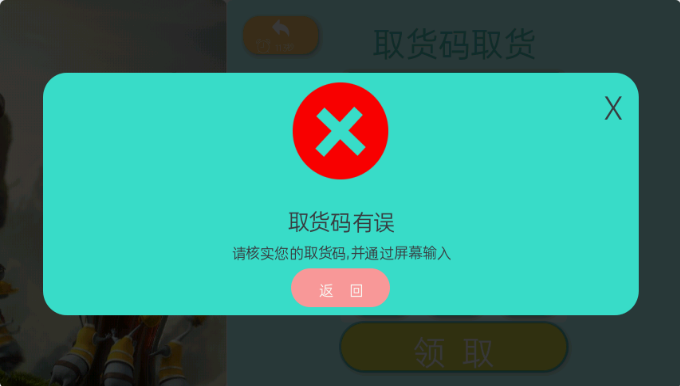

### 错误的取件码
# 代码解析
## 共用事件回调，在取货码错误，不输入取货码和正确输入调用同一回调，传入不同参数
```lua
function get_goods_event()
local text = lvgl.textarea_get_text(first_text_area)
data = {}
if text == "" then
data = {
src = "cuowu",
state_label = "未输入取货码",
tips_label = "请核实您的取货码,并通过屏幕输入"
}
elseif text == nvm.get("password") then
data = {
src = "chenggong",
state_label = "出货成功",
tips_label = "请立即从下方出货口取走您的商品"
}
else
data = {
src = "shibai",
state_label = "取货码有误",
tips_label = "请核实您的取货码,并通过屏幕输入"
}
end
custom_msg.create({content_fun = home.create_msg, msg = data})
end
```
## 页面生成入口
```lua
function create()
lvgl.obj_clean(right_cont)
back_cont = cont.create(right_cont, {
W = LCD_W * 6 / 54,
H = LCD_W * 6 / 108,
align = lvgl.ALIGN_IN_TOP_LEFT,
align_x = 20,
align_y = 20,
click = true,
event = back_home,
style = {
border = {width = 0},
shadow = {
width = 10,
spread = 1,
opa = 60,
color = 0,
ofs_y = 2,
ofs_x = 2
},
bg = {radius = 20, color = 0xffd264}
}
})
back_img = img.create(back_cont, {
align = lvgl.ALIGN_IN_TOP_MID,
src = "/lua/back.bin",
style = {recolor = 0xffffff}
})
clock_img = img.create(back_cont, {
align = lvgl.ALIGN_IN_BOTTOM_LEFT,
align_x = 15,
src = "/lua/clock.bin",
style = {recolor = 0xffffff}
})
auto_back_time_label = label.create(back_cont, {
text = "113秒",
align = lvgl.ALIGN_OUT_RIGHT_MID,
align_to = clock_img,
align_x = 5,
style = {text = {font = style.font14, color = 0xffffff}}
})
title_label = label.create(right_cont, {
text = "取货码取货",
align = lvgl.ALIGN_IN_TOP_MID,
align_y = 20,
style = {text = {font = style.font54, color = 0x3FC6C9}}
})
input_cont = cont.create(right_cont, {
W = LCD_W * 2 / 6,
H = LCD_H * 3 / 24,
align = lvgl.ALIGN_OUT_BOTTOM_MID,
align_to = title_label,
align_y = 15,
click = false,
style = {
shadow = {width = 10, spread = 1, opa = 60, color = 0, ofs_y = 2},
border = {width = 0},
bg = {color = 0x3FC6C9, radius = 15, opa = 255}
}
})
pg_code_label = label.create(input_cont, {
text = "请输入正确的取货码",
style = {
text = {font = style.font24, color = 0xffffff, letter_space = 2}
}
})
first_text_area = text_area.create(input_cont, {
W = LCD_W * 2 / 6,
H = LCD_H * 3 / 24,
text_align = lvgl.LABEL_ALIGN_CENTER,
-- event = text_area_cb,
one_line = true,
-- align_y = -10,
-- cursor_hidden = true,
style = {
text = {font = style.font48, color = 0, letter_space = 2},
bg = {opa = 0, radius = 10},
border = {width = 0}
}
})
--矩阵键盘回调
function btn_matrix_event(obj, event)
if (event == lvgl.EVENT_VALUE_CHANGED) then
local txt = lvgl.btnmatrix_get_active_btn_text(obj)
local temp = lvgl.btnmatrix_get_active_btn(obj)
if temp == 11 then
lvgl.textarea_del_char(first_text_area)
elseif temp == 10 then
lvgl.textarea_add_text(first_text_area, 0)
elseif temp == 9 then
lvgl.textarea_set_text(first_text_area, "")
else
lvgl.textarea_add_text(first_text_area, temp + 1)
end
if lvgl.textarea_get_text(first_text_area) == "" then
lvgl.obj_set_hidden(pg_code_label, false)
else
lvgl.obj_set_hidden(pg_code_label, true)
end
print(temp)
print(txt)
end
end
--生成矩阵键盘
btn_matrix_ = btn_matrix.create(right_cont, {
btnArray = {
"1", "2", "3", "\n", "4", "5", "6", "\n", "7", "8", "9", "\n",
"重输", "0", "删除", ""
},
W = LCD_W * 1 / 3,
H = LCD_H * 1 / 2,
recolor = true,
align = lvgl.ALIGN_OUT_BOTTOM_MID,
align_to = input_cont,
align_y = 10,
cb = btn_matrix_event,
btn_style = {
shadow = {
width = 10,
spread = 1,
opa = 60,
color = 0,
ofs_x = 2,
ofs_y = 2
},
bg = {radius = 50, color = 0x3FC6C9, opa = 250},
border = {width = 0},
text = {font = style.font24}
},
bg_style = {border = {width = 0}, bg = {opa = 155}}
})
get_btn = btn.create(right_cont, {
W = LCD_W * 2 / 6,
H = LCD_H * 3 / 24,
align = lvgl.ALIGN_OUT_BOTTOM_MID,
align_to = btn_matrix_,
event = function(obj, event)
if event == lvgl.EVENT_CLICKED then get_goods_event() end
end,
label = {
style = {
text = {
font = style.font54,
color = 0xffffff,
letter_space = 20
}
},
text = "领取"
},
style = {
shadow = {
width = 10,
spread = 1,
opa = 60,
color = 0,
ofs_x = 2,
ofs_y = 2
},
border = {width = 0},
bg = {radius = 40, color = 0xEFE15B}
}
})
end
```
