空调控制器 页面设计
# 效果图

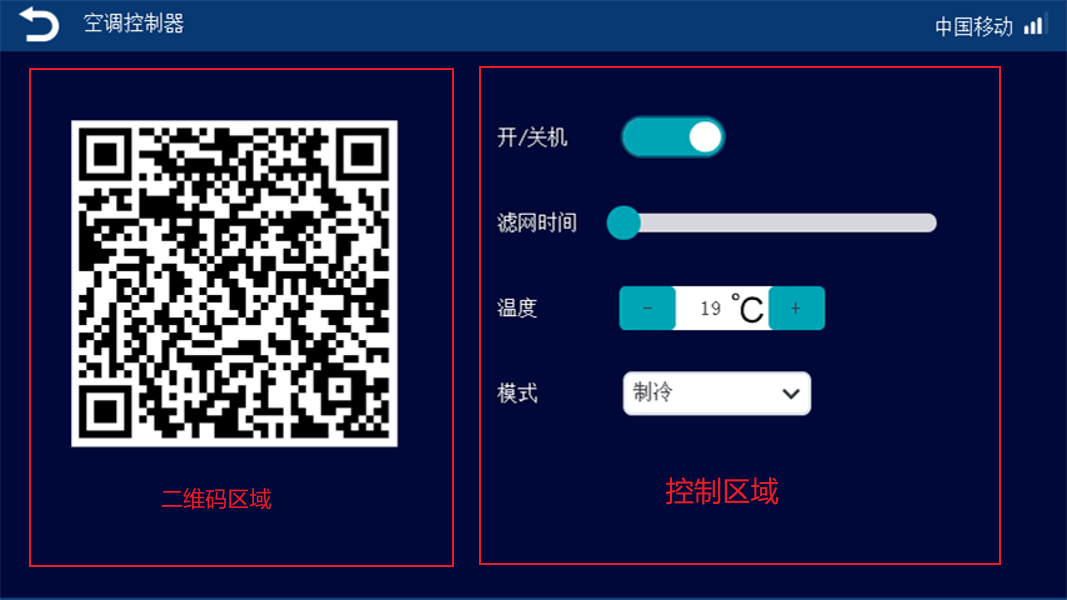

# 容器分区设计
上图可见大体分为两个区域
# 代码解析
## 二维码区域
```lua
qrimg = lvgl.img_create(cont, nil)
-- 设置图片显示的图像
lvgl.img_set_src(qrimg, "/lua/qrcode.png")
lvgl.obj_set_size(qrimg, 260, 260)
-- 图片居中
lvgl.obj_align(qrimg, nil, lvgl.ALIGN_IN_TOP_LEFT, 60, 55)
```
## 控制区域
```lua
function makePower(cont)
switchLabel = lvgl.label_create(cont, nil)
lvgl.label_set_recolor(switchLabel, true)
lvgl.label_set_text(switchLabel, "#FFFFFF 开/关机")
-- lvgl.obj_align(switchLabel,cont, lvgl.ALIGN_CENTER, -20, -118)
lvgl.obj_align(switchLabel,qrimg, lvgl.ALIGN_OUT_RIGHT_TOP, 80,5)
local sw1 = lvgl.switch_create(cont, nil)
lvgl.obj_set_size(sw1, 80, 30)
lvgl.obj_align(sw1, switchLabel, lvgl.ALIGN_IN_LEFT_MID, 100, 0)
lvgl.obj_set_event_cb(sw1, powerEvent)
end
function makeFilter(cont)
local slider_event_cb = function(obj, event)
-- print(event)
if event == lvgl.EVENT_PRESSED then
print("按下")
elseif event==lvgl.EVENT_RELEASED then
local val = (lvgl.slider_get_value(obj) or "0").."%"
print("滤网时间："..val)
end
end
filterLabel = lvgl.label_create(cont, nil)
lvgl.label_set_recolor(filterLabel, true)
lvgl.label_set_text(filterLabel, "#FFFFFF 滤网时间")
lvgl.obj_align(filterLabel,switchLabel, lvgl.ALIGN_IN_LEFT_MID, 0, 68)
local slider = lvgl.slider_create(cont, nil)
lvgl.obj_set_size(slider,250,15)
lvgl.obj_align(slider, filterLabel, lvgl.ALIGN_IN_LEFT_MID, 100, 0)
lvgl.obj_set_event_cb(slider, slider_event_cb)
end
function makeTep(cont)
tepLabel = lvgl.label_create(cont, nil)
lvgl.label_set_recolor(tepLabel, true)
lvgl.label_set_text(tepLabel, "#FFFFFF 温度")
lvgl.obj_align(tepLabel,filterLabel, lvgl.ALIGN_IN_LEFT_MID, 0, 68)
local tepimg = lvgl.img_create(cont, nil)
-- 设置图片显示的图像
lvgl.img_set_src(tepimg, "/lua/tepico.png")
-- 图片居中
lvgl.obj_align(tepimg, tepLabel, lvgl.ALIGN_IN_LEFT_MID, 100, 0)
local tepNum=19
--温度值
teptext = lvgl.label_create(cont, nil)
lvgl.label_set_text(teptext, tepNum)
lvgl.obj_align(teptext,tepimg, lvgl.ALIGN_CENTER, -5, 0)
local TepAdd = function(obj, event)
if event == lvgl.EVENT_CLICKED then
tepNum=tepNum+1>32 and 32 or tepNum+1
lvgl.label_set_text(teptext, tepNum)
print("当前温度："..tepNum)
end
end
local TepLess = function(obj, event)
if event == lvgl.EVENT_CLICKED then
tepNum=tepNum-1<16 and 16 or tepNum-1
lvgl.label_set_text(teptext, tepNum)
print("当前温度："..tepNum)
end
end
-- 按键1
local btn1 = lvgl.btn_create(cont, nil)
lvgl.obj_set_size(btn1,45,35)
lvgl.obj_add_style(btn1, lvgl.CONT_PART_MAIN, stytle.style_activty_airCtr_btn)
lvgl.obj_set_event_cb(btn1, TepLess)
lvgl.obj_align(btn1, tepimg, lvgl.ALIGN_IN_LEFT_MID, -3, 0)
creatLable(btn1,"-",lvgl.ALIGN_CENTER)
--按键2
local btn2 = lvgl.btn_create(cont, nil)
lvgl.obj_set_size(btn2,45,35)
lvgl.obj_add_style(btn2, lvgl.CONT_PART_MAIN, stytle.style_activty_airCtr_btn)
lvgl.obj_set_event_cb(btn2, TepAdd)
lvgl.obj_align(btn2, tepimg, lvgl.ALIGN_IN_RIGHT_MID, 10, 0)
creatLable(btn2,"+",lvgl.ALIGN_CENTER)
end
function makeMode(cont)
modeLabel = lvgl.label_create(cont, nil)
lvgl.label_set_recolor(modeLabel, true)
lvgl.label_set_text(modeLabel, "#FFFFFF 模式")
lvgl.obj_align(modeLabel,tepLabel, lvgl.ALIGN_IN_LEFT_MID, 0, 68)
-- 回调函数
event_handler = function(obj, event)
if (event == lvgl.EVENT_VALUE_CHANGED) then
local c=""
lvgl.dropdown_get_selected_str(obj,c,#c)
print("Option:",c)
end
end
-- 创建下拉框
local dd = lvgl.dropdown_create(cont, nil)
lvgl.obj_set_size(dd,150,35)
lvgl.dropdown_set_dir(dd, lvgl.DROPDOWN_DIR_DOWN)
lvgl.dropdown_set_options(dd,
[[制冷
除湿
送风
自动]])
-- 设置对齐
-- lvgl.obj_align(dd, modeLabel,lvgl.ALIGN_IN_LEFT_MID, 100, -40)
lvgl.obj_align(dd, modeLabel,lvgl.ALIGN_IN_LEFT_MID, 100, 0)
lvgl.obj_set_event_cb(dd, event_handler)
end
```
