付款界面

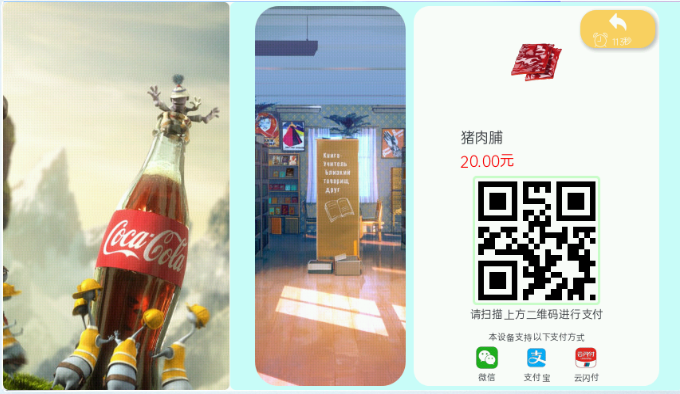

## 效果图

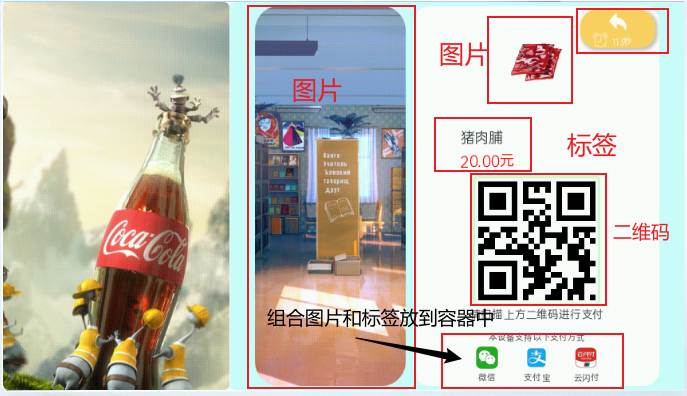

## 界面划分
### 点击商品列表的具体商品，商品信息作为参数加载到这个页面上。实际做产品时可通过商品信息向服务端获取收款码内容。lvgl支持了二维码，设置二维码内容。
# 代码解析
## 页面入口，接收顾客所选商品测试数据，单独调试此页面时可用到的信息，并生成二维码
```lua
function create(v)
if not v then v = {} end
lvgl.obj_clean(right_cont)
left_img_cont = cont.create(right_cont, {
W = LCD_W * 4 / 18,
H = LCD_H * 47 / 48,
align = lvgl.ALIGN_IN_LEFT_MID,
align_x = LCD_W / 27,
click = false,
style = {border = {width = 0}, bg = {radius = 30}}
})
img_choose = img.create(left_img_cont, {src = "/lua/l1.jpg"})
right_pay_cont = cont.create(right_cont, {
W = LCD_W * 13 / 36,
H = LCD_H * 47 / 48,
align = lvgl.ALIGN_OUT_RIGHT_MID,
align_x = 10,
align_to = left_img_cont,
click = false,
style = {border = {width = 0}, bg = {radius = 20}}
})
```
## 测试数据，单独调试此页面时可用到
```lua
goods_info_data = v.goods_info_data or
{
src = "kele",
price = "3.00",
name = "百事可乐"
}
```
##
```lua
goods_info_cont = cont.create(right_pay_cont, {
W = LCD_W / 4,
H = LCD_H * 21 / 48,
align = lvgl.ALIGN_IN_TOP_MID,
click = false,
style = {border = {width = 0}, bg = {radius = 0, color = 0xffffff}}
})
goods_img = img.create(goods_info_cont, {
align = lvgl.ALIGN_IN_TOP_MID,
align_y = 35,
-- zoom = 512,
src = "/lua/" .. goods_info_data.src..".jpg"
})
price_label = label.create(goods_info_cont, {
text = "#ff0000 " .. goods_info_data.price .. "元",
align = lvgl.ALIGN_IN_BOTTOM_LEFT,
recolor = true,
align_x = 10,
align_y = -10,
style = {text = {font = style.font24}}
})
name_label = label.create(goods_info_cont, {
text = goods_info_data.name,
align = lvgl.ALIGN_OUT_TOP_LEFT,
align_to = price_label,
align_y = -5,
style = {text = {font = style.font24}}
})
back_cont = cont.create(right_pay_cont, {
W = LCD_W * 6 / 54,
H = LCD_W * 6 / 108,
align = lvgl.ALIGN_IN_TOP_RIGHT,
align_x = -5,
align_y = 5,
click = true,
event = back_home,
style = {
border = {width = 0},
shadow = {
width = 10,
spread = 1,
opa = 60,
color = 0,
ofs_y = 2,
ofs_x = 2
},
bg = {radius = 20, color = 0xffd264}
}
})
back_img = img.create(back_cont, {
align = lvgl.ALIGN_IN_TOP_MID,
src = "/lua/back.bin",
style = {recolor = 0xffffff}
})
clock_img = img.create(back_cont, {
align = lvgl.ALIGN_IN_BOTTOM_LEFT,
align_x = 15,
src = "/lua/clock.bin",
style = {recolor = 0xffffff}
})
auto_back_time_label = label.create(back_cont, {
text = "113秒",
align = lvgl.ALIGN_OUT_RIGHT_MID,
align_to = clock_img,
align_x = 5,
style = {text = {font = style.font14, color = 0xffffff}}
})
```
## 为二维码套上彩色边框
```lua
qrcode_cont = cont.create(right_pay_cont, {
W = LCD_H * 16 / 48,
H = LCD_H * 16 / 48,
align = lvgl.ALIGN_OUT_BOTTOM_MID,
align_to = goods_info_cont,
click = false,
style = {border = {width = 3, color = 0xccffcc}, bg = {radius = 5}}
})
```
## 二维码生成
```lua
qrcode.create(qrcode_cont, {
W = (LCD_H * 16 / 48) - 5,
H = (LCD_H * 16 / 48) - 5,
text = "请打钱"
})
```
##
```lua
qrcode_tips_label = label.create(right_pay_cont, {
text = "请扫描上方二维码进行支付",
align = lvgl.ALIGN_OUT_BOTTOM_MID,
align_to = qrcode_cont,
style = {text = {font = style.font18}}
})
pay_choice_cont = cont.create(right_pay_cont, {
W = LCD_W * 12 / 36,
H = LCD_H * 5 / 48,
align = lvgl.ALIGN_IN_BOTTOM_MID,
click = false,
layout = lvgl.LAYOUT_PRETTY_MID,
style = {
border = {width = 0},
-- bg = {radius = 0, opa = 100, color = 0xffffff},
pad = {left = 55, right = 55, top = 0, bottom = 0}
}
})
tips_label = label.create(right_pay_cont, {
text = "本设备支持以下支付方式",
align = lvgl.ALIGN_OUT_TOP_MID,
align_to = pay_choice_cont,
align_y = -5,
style = {text = {font = style.font14}}
})
pay_data = {
{src = "wechat", text = "微信"},
{src = "zhifubao", text = "支付宝"},
{src = "yunshanfu", text = "云闪付"}
}
--提取方法生成，可支持付款的图片与提示标签
for i = 1, #pay_data do
pay_data[i].cont = cont.create(pay_choice_cont, {
W = LCD_H * 5 / 48,
H = LCD_H * 5 / 48,
click = false,
style = {border = {width = 0}}
})
pay_data[i].img = img.create(pay_data[i].cont, {
align = lvgl.ALIGN_IN_TOP_MID,
src = "/lua/" .. pay_data[i].src .. ".jpg"
})
pay_data[i].label = label.create(pay_data[i].cont, {
text = pay_data[i].text,
align = lvgl.ALIGN_IN_BOTTOM_MID,
align_y = -5,
style = {text = {font = style.font14}}
})
end
end
```
