开发板原理图

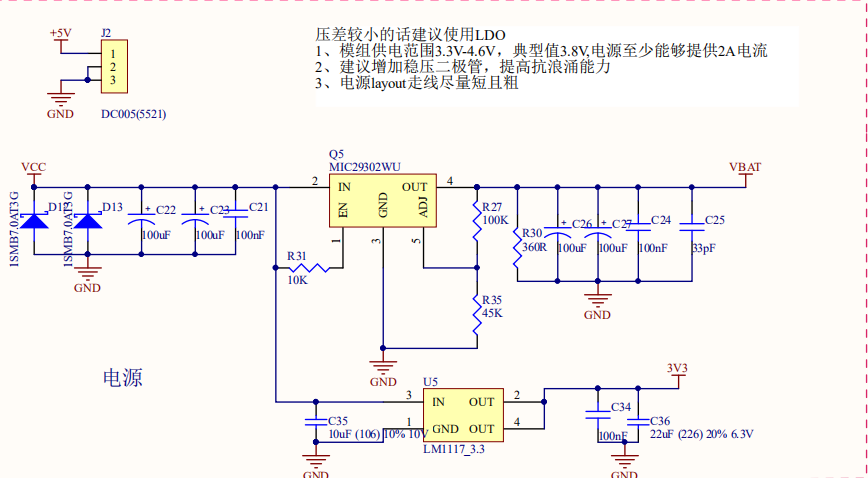

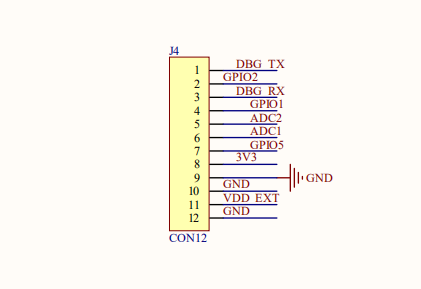

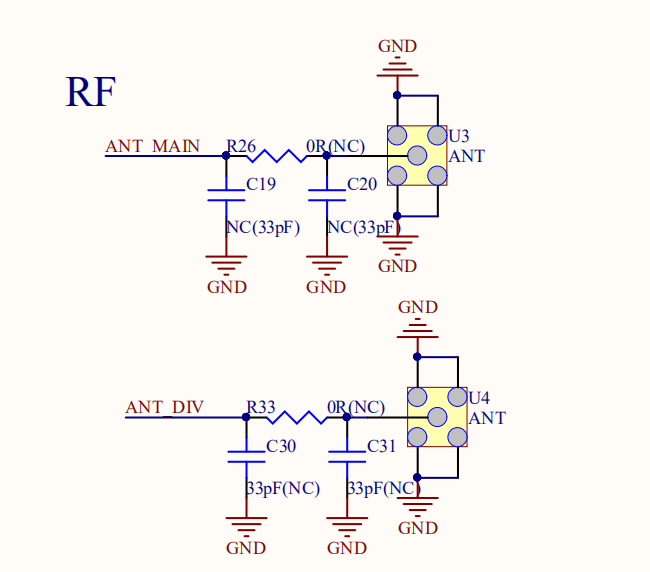

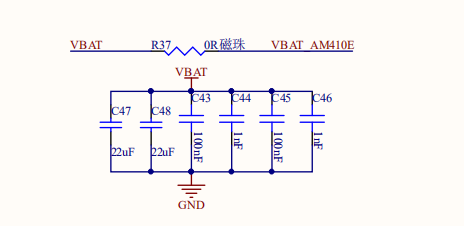

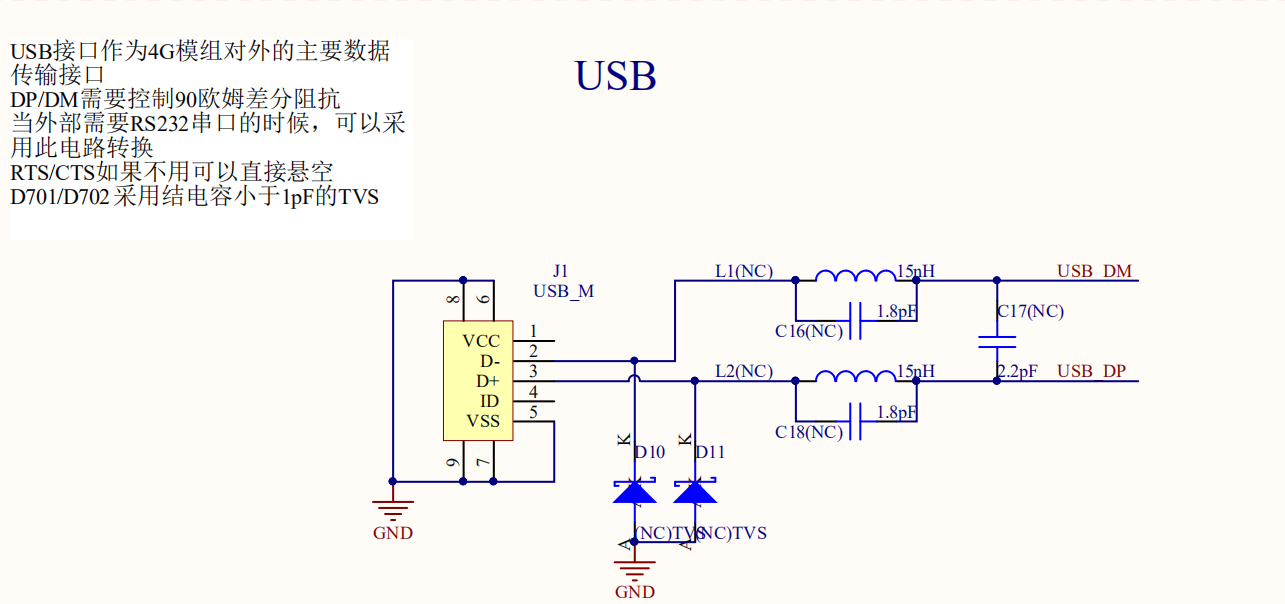

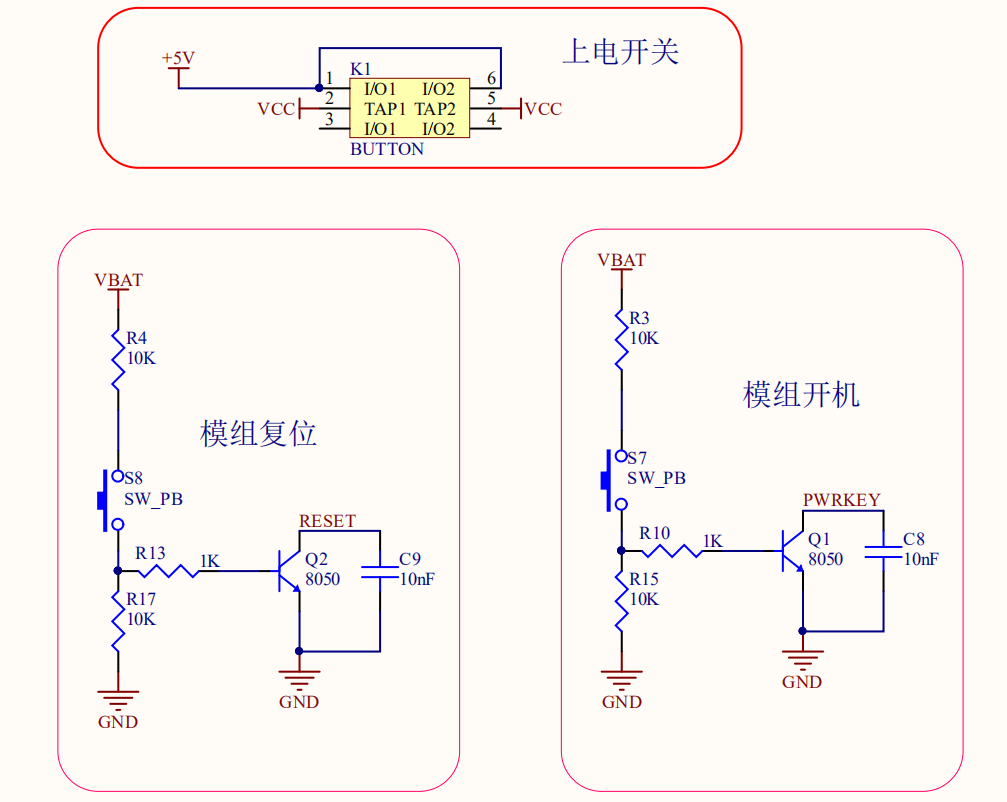

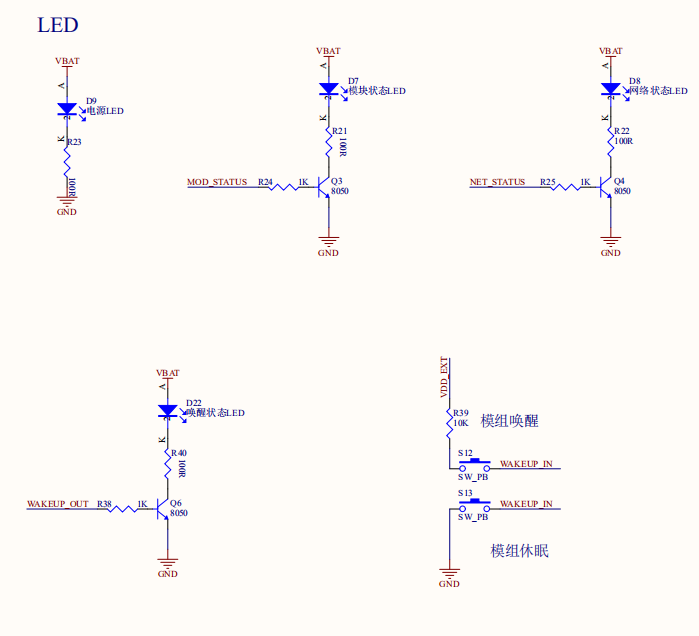

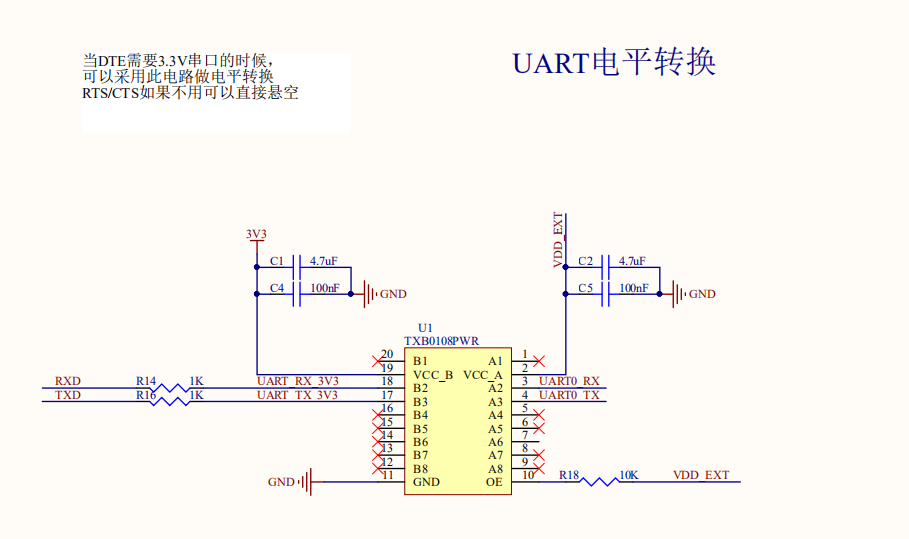

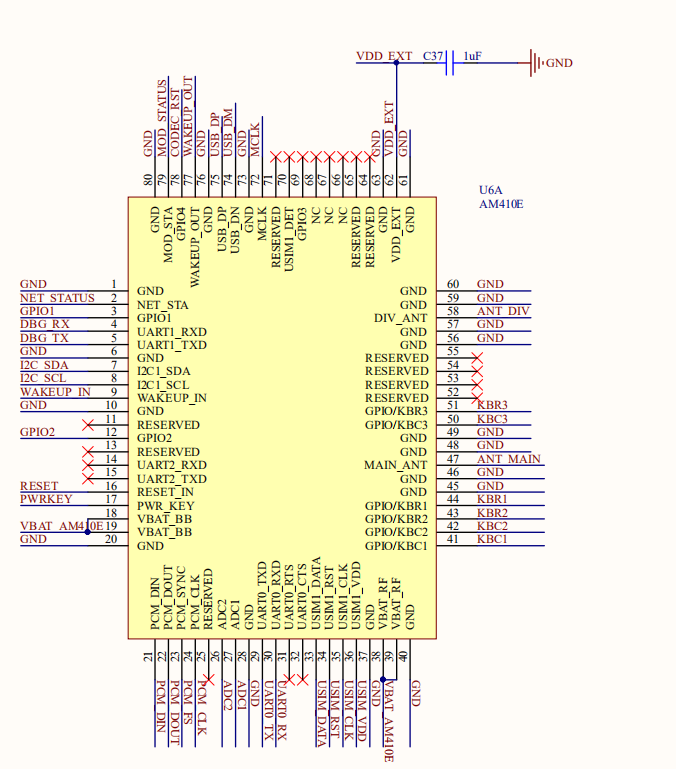

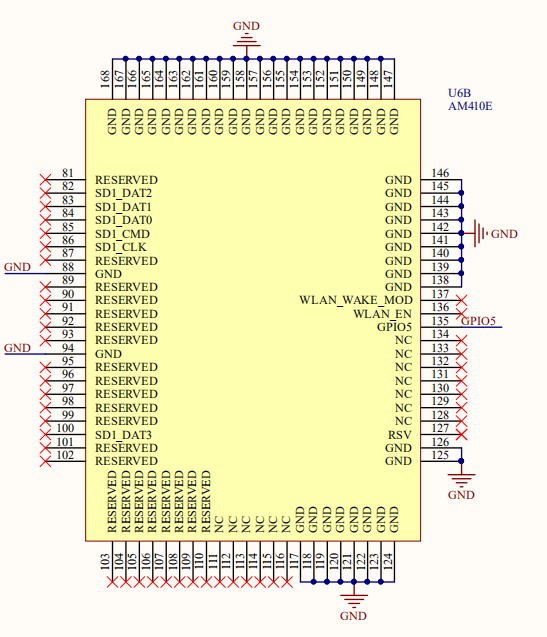

## 1.AM410E模组 ![image.png](https://cos.easydoc.net/84373768/files/k47u8qh0.png) ![image.png](https://cos.easydoc.net/84373768/files/k47u8vgv.png) ## 2.电源 ![image.png](https://cos.easydoc.net/84373768/files/k47u8z02.png) ## 3.uart ![image.png](https://cos.easydoc.net/84373768/files/k47u92jc.png) ## 4.LED ![image.png](https://cos.easydoc.net/84373768/files/k47u96n7.png) ## 5.RF ![image.png](https://cos.easydoc.net/84373768/files/k47u9bu7.png) ## 6.USB ![image.png](https://cos.easydoc.net/84373768/files/k47ump4r.png) ## 7.开关 ![image.png](https://cos.easydoc.net/84373768/files/k47umux5.png) ## 8.其他 ![image.png](https://cos.easydoc.net/84373768/files/k47umzz5.png) ![image.png](https://cos.easydoc.net/84373768/files/k47un7k3.png) ![image.png](https://cos.easydoc.net/84373768/files/k47undhs.png)
